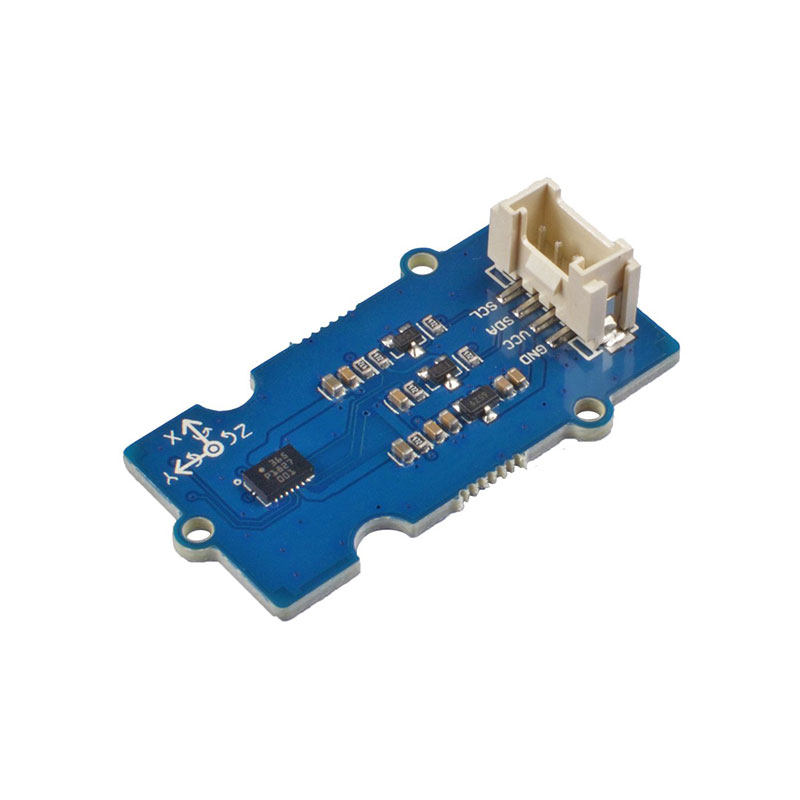

SeeedStudio Grove 6 Axis Accelerometer&Gyroscope (BMI088)

₹2999.00

The Grove – 6-Axis Accelerometer&Gyroscope(BMI088) is a 6 DoF(degrees of freedom) High-performance Inertial Measurement Unit(IMU).This sensor is based on BOSCH BMI088, which is a high-performance IMU with high vibration suppression. The 6-axis sensor combines a 16-bit triaxial gyroscope and a 16-bit triaxial accelerometer. Specially, you can use this sensor on the drone and robotics applications in demanding environments.

Pin Diagram

Features:

  1. The BM1088 is designed for drones, robotics and industrial applications with challenging performance requirements.

  2. Wide acceleration measurement range(up to 24g)

  3. The accelerometer features a low TCO of 0.2 mg/K and low spectral noise of only 230 pg/sqrt(Hz) in the widest measurement range of ± 24 g
